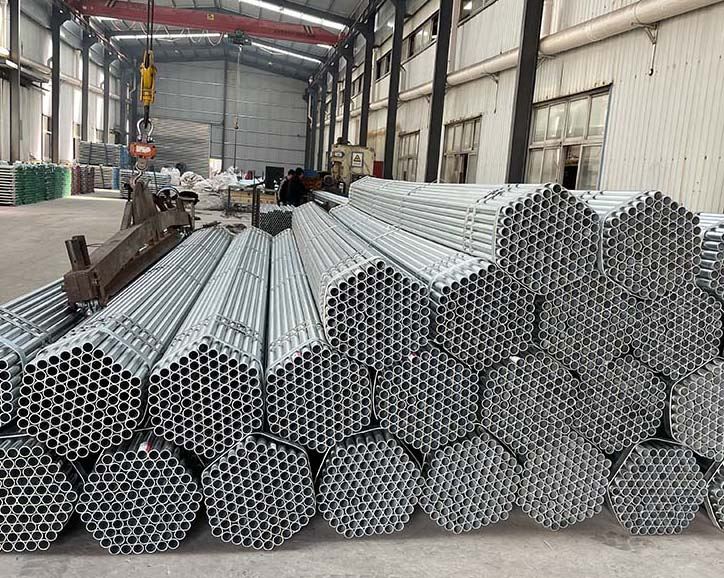

Our hot dip galvanized scaffold pipe manufactured as per standards BS1139,JIS G3444 and safety requirements.
The standard size of the outer diameter is 48.30 mm and the tubes are available in wall thicknesses of 3.20 mm and 4.00 mm. The grades of the steel used in the production of the tubes are Q235, Q355 and higher. The tubes are available in mill-finish (no coating), painted finish, and in hot dipped galvanized finish.
All of these different types of hot dip galvanized scaffolding pipes are connected by couplers that prevent excess flex or movement when the structure is completed. The zinc layer of hot dip galvanized pipe is around 30μm and up to 100um .The corrosion resistance is much better than that of cold galvanizing.
|
Property of 6m Scaffold Pipe |
|
|
Outer Diameter: |
42mm;48.3mm;48.6mm;60.3mm |
|
Thickness: |
1.8-4.0mm |
|
Steel Grade: |
Q235,Q345,STK400,STK500,S235JR,S275JR |
|
Standard: |
BS1139;BS EN39-2001;JIS G3444-2004 |
|
Surface: |
Hot Dip Galvanized;Pre-galvanized;Black,Painted;Threaded |
|
Available Size |
||
|
Outer Diameter(mm) |
Wall Thickness(mm) |
Length (m) |
|
48.3-48.6 |
1.8-2.5 |
0.3-12 |
|
48.3-48.6 |
2.75 |
0.3-12 |
|
48.3-48.6 |
3 |
0.3-12 |
|
48.3-48.6 |
3.2 |
0.3-12 |
|
48.3-48.6 |
3.6 |
0.3-12 |
|
48.3-48.6 |
3.8 |
0.3-12 |
|
48.3-48.6 |
4 |
0.3-12 |
|
42.3 |
2.0-4.0 |
0.3-12 |
|
60.3 |
2.0-4.0 |
0.3-12 |
1.The galvanized surface is uniform; the adhesion is strong;the corrosion resistance of the steel pipe is enhanced and the service life is long.
2.The processing technology is meticulous, the cut end is smooth, beautiful and tidy
3. Raw materials from large-scale brand, pipe quality is guaranteed
4.Short delivery time 10-15 days for hundreds tons.
5.Galvanized 30-50μm (210g-350g/m2)
* oil & gas
* constrution
* petrochemical
* marine
* Insulation
Topstar Scaffolding has taken part in scaffolding project cases in Vietnam,Philippines,Singapore,Malaysia,UAE and other countries.
Vietnam :Long Son Petrochemicals Complex Porject ,
Steel Planks 250*50*1.2 with length from 1m to 4m 150 tons.
Hot Dip Galvanized pipes 48.3*3.2*6000mm 100 tons
BS1139 couplers 50 tons.
Singapore Piping works and equipment installation
HDG PIPE: STK500 48.6*2.4*6000 mm 30000 pcs
Steel Board:Q235 240*45*1.2 80000 pcs
JIS couplers :Q235 OD48.6mm 50000 pcs
Ladder:Q235 300*1.2*3000mm 1500 pcs
Saudi Arabia :Waste-to-energy Plant;
Steel Plank :225*38*1.6*1000mm/2000/3000mm (5000 pcs)
HDG Pipe:48.6*2.4*6000mm 5000 pcs
Peru Frame Sytems;
Mason frame 1524*2133mm with main tube 42.7*2.4mm 1000sets
Galvanzied Ladder 2133*2150mm 500 pcs
Electro-galvanized jack base 40*500mm 4000 pcs
Caster roller:OD 150mm 2000 pcs
FAQ
Q1.How is the galvanized layer thickness?
The galvanization microns are in every case above 30, above and beyond what the standards specify. The tubes have their corresponding standard embossed on them with a depth of 0.20mm (prior to coating) at every running meter along with other details.
Q2.How is the packaging of scaffolding pipes?
OD 219mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles 25 tons/container and 5 tons/size for a trial order; For 20" container the max length is 5.8m; For 40" container the max length is 11.8m.
Q3.What is quality requirements of production for hot dip galvanized pipe?
The uniformity of the galvanized layer: the steel pipe sample is continuously impregnated in copper sulfate solution for 5 times and must not turn red (copper-plated color)
Surface quality: The surface of galvanized steel pipes should have a complete galvanized layer, and there should be no dark spots and bubbles that are not plated, and small rough surfaces and local zinc tumors are allowed.
Q3.Why Us?
Having establisehd it's fully equipped design/drawing,research and development facilities,Our company moved on to more self-reliance by adopting suitable backward integrations.With this efforts,we now have 4 scaffolding pipes produciton lines with outside diamter from 1/4 inch to 8inch,3 semi-finished welding workshop.With orver 10 years experience in steel industry,our sales markets are speading all over the world and build long-term relationships with clients in American,Australia,Vietnam,Singapore,Malaysia,African,Columbia and other countries.
Q4.What other scaffolding products you provide?
Ringlock scaffolding system(ringlock and octagon )
Frame scaffolding systems(Mason frame and walk-thru frame)
Steel planks and aluminium planks
Galvanized pipes and black pipes
Base jack and steel props
Forged couplers and pressed couplers
Aluminum board and mobile tower
