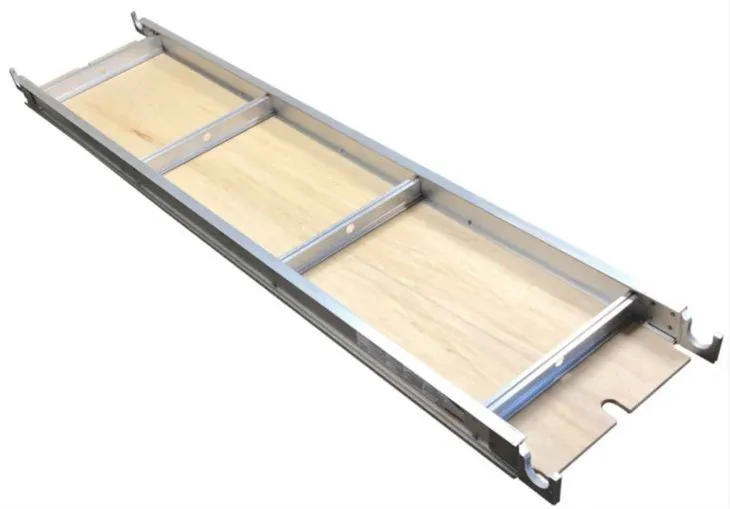

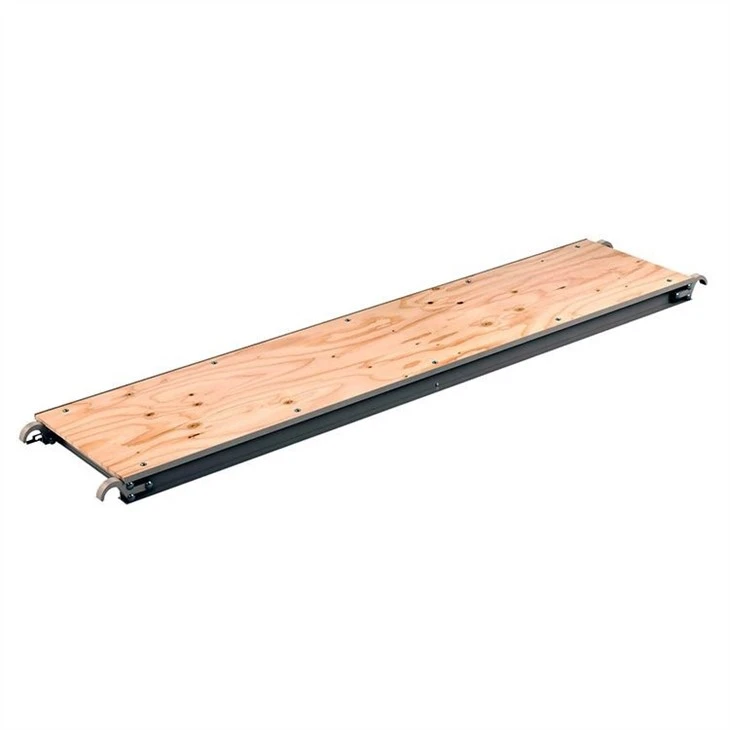

Our aluminum plywood decks made of high quality plywood and aluminum alloy side rails and cross brace.Those aluminum plywood deck are designed to span the bay of either frame,brace or ringlock system scaffold.
Aluminum wind latch to secure the platform even under severe weather condition.
All sizes feature 1-piece plywood work surface, reducing warping and tripping hazards, and 6061 High Tensile Aluminum side rails and rungs.
|
Aluminum Plywood Deck |
|
|
Material: |
aluminum and plywood |
|
Length |
7' 8' 9' 10' (Customized Length) |
|
Standard |
ANSI,CSA,OSHA |
|
SWL |
Min75lbs / Squar Foot For 10' ,100lbs/Square Foot For 7' |
|
Color |
1.47kg-1.67kg/Foot |
|
Surface |
Original Finish With Water-Proof Function |
|
Available Size |
||||
|
Width( inch) |
Length (inch) |
Length(mm) |
Weight(lbs) |
Dimension （H×W×L) |
|
19” |
25-1/2” |
647.7mm |
10 lbs |
4”×19”×2’ |
|
19” |
45” |
1143mm |
19 lbs |
4”×19”×4’ |
|
19” |
60” |
1524mm |
23 lbs |
4”×19”×5’ |
|
19” |
62” |
1574.8mm |
24 lbs |
4”×19”×5’2” |
|
19” |
84” |
2133.6mm |
32 lbs |
4”×19”×7’ |
|
19” |
120” |
3048mm |
46 lbs |
5”×19”×10’ |
|
24” |
60” |
1524mm |
26 lbs |
4”×24”×5’ |
|
24” |
84” |
2133.6mm |
37 lbs |
4”×24”×7’ |
|
24” |
120” |
3048mm |
53 lbs |
5”×24”×10’ |
High quality select plywood
Heavy duty aluminum construction
Aluminum wind latch to secure the platform even under severe wind conditions
Over-lapping edge protection
75lbs/sq-ft load capacity
Anti pop-up sliding lock system at each end for added safety and security.
Bolt-on assembly for easy replacement.
Platform fits on most scaffolding brands.
