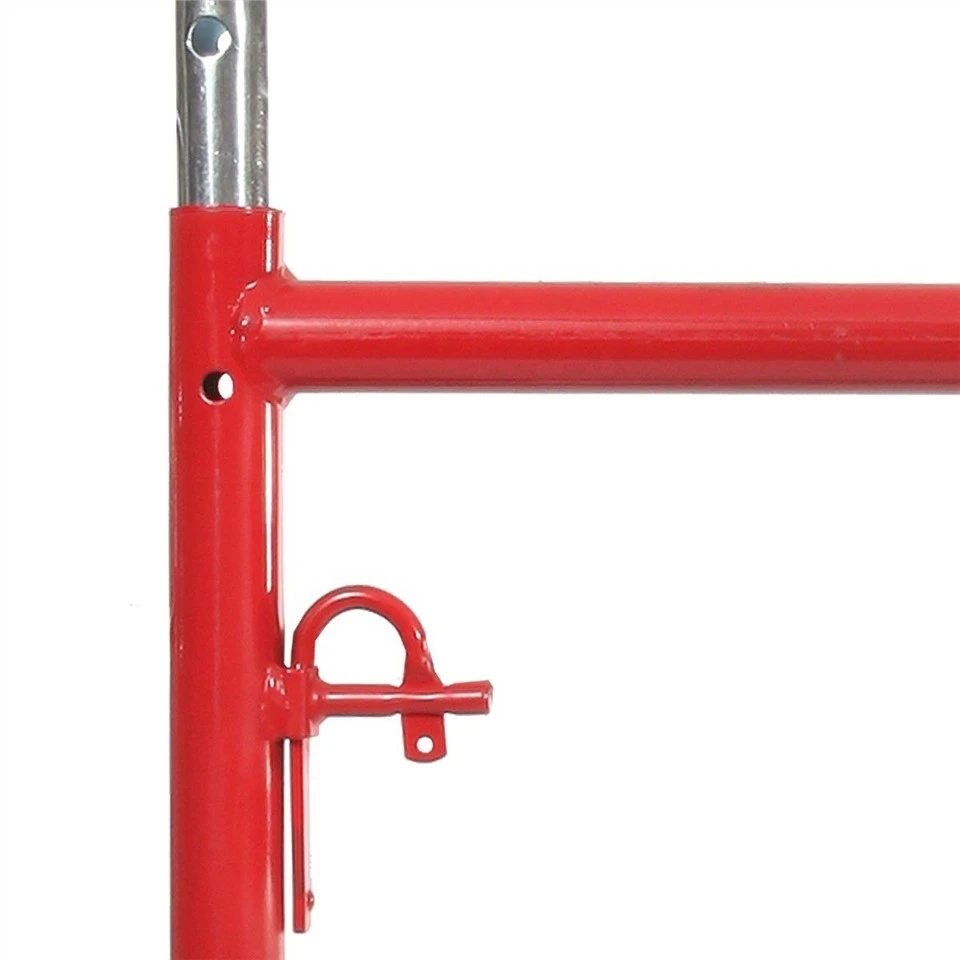

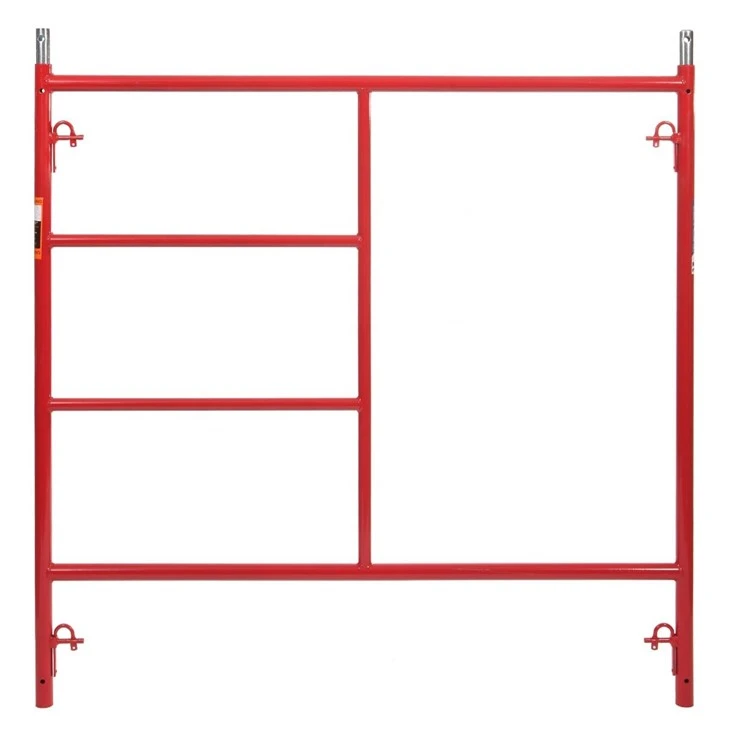

This scaffolding Mason frame is the most common type of scaffold used by contractors of all types. It’s easy to set up and dismantle and allows you to get to the height you need fairly quickly. Usually, a set of frame systems includes frames, walk-boards, bracings, brackets, coupling pins, stair ladders, guardrails, and sometimes casters, etc. This frame system is adaptable for shoring in concrete construction works, outside and inside buildings, and in various civil engineering jobs.
|
Property of Scaffolding Mason Frame |
|
|
Surface: |
Power Coated |
|
Material: |
Q235/Q345 |
|
Standard |
EN74/BS1139/AS1576/ANSI |
|
Exterior Leg Tubing Size |
41.3*2.3mm/42.7*2.4mm |
|
Lock Type: |
Drop Lock,V-Lock,Fast Lock,Snap on,Wing Nut Lock |
|
Available Size |
||||
|
Types |
Width |
Height |
Weight(kgs) |
Weight(lbs) |
|
TSS502 |
5’ |
2’ |
10.65 |
23.45 |
|
TSS503 |
5’ |
3’ |
12.30 |
27.10 |
|
TSS504 |
5’ |
4’ |
14.96 |
32.95 |
|
TSS505 |
5’ |
5’ |
16.66 |
36.70 |
|
TSS564 |
5’ |
6’4” |
19.89 |
43.80 |
Frames Projects
Peru Frame Sytems;
Mason frame 1524*2133mm with main tube 42.7*2.4mm 1000sets
Galvanzied Ladder 2133*2150mm 500 pcs
Electro-galvanized jack base 40*500mm 4000 pcs
Caster roller:OD 150mm 2000 pcs
Canada Walk-thru Frame Sytems
Powder coated frame sets:6ft6inch Height with width 2ft to 5ft 10000 pcs
Main tube OD:1.68” Wall thickness：2.4mm
Sub tube OD: 32mm Wall thickness：2.0mm
FAQ
Q1.What types of scaffolding frames do you provide?
We provide walk-thru frames, ladder frames, h frames, narrow frames, shoring frames, cantilever frames A-frames, arch frames, etc.
Q2.What certification for Scaffolding frames?
We make scaffolding frames according to ISO9001 & CE and conform to OSHA, ANSI, and CSA standards.
Q3.Who are we?
With headquarters located in Aux Business Center, Yanghu Economic Development Zone Changsha City, Topstar Scaffolding is mainly engaged in research, development, production, and sales of scaffolding products. As a subsidiary of Toptar Steel group company, we have production bases in Tianjin and Hebei manufacturing ringlock scaffolding systems, frame scaffolding systems, planks, steel pipes, base jacks, props, and couplers. We have participated in big projects with each delivery of over 500 tons of scaffolding products.
